A water system is only as reliable as the equipment that supports it.
At Pender Water Wells, we install prefabricated, insulated steel well pump houses that safeguard pumps, controls, and piping from weather, pests, and damage. Serving Northeast Texas, Arkansas, and Southeast Oklahoma since 1955, our team ensures your pump house is built for protection, efficiency, and long service life.
Features of Our Pump Houses
Prefabricated Construction – Engineered for fast installation and consistent quality.
Insulated Walls & Roofs – Protect pumps from extreme heat, freezing, and condensation.
Durable Materials – Built to withstand rural, residential, and commercial environments.
Custom Sizing – Designed to fit the exact needs of your water system.
Secure Access – Lockable doors to prevent tampering or vandalism.
Benefits of Installing a Pump House
Extends pump and equipment life.
Reduces risk of freeze damage or overheating.
Keeps your system cleaner and easier to service.
Improves overall reliability of your water supply.

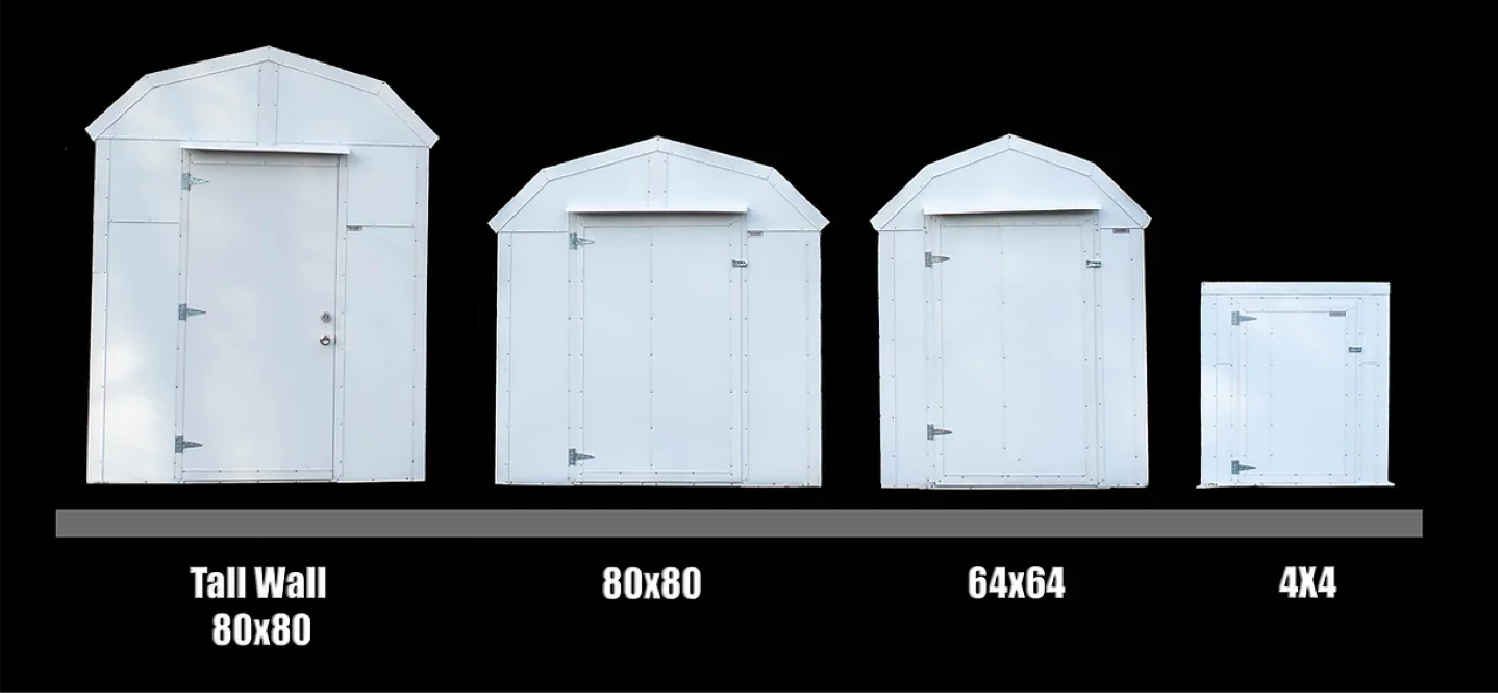

| Specification | 4x4x5 Slope | 64x64 | 80x80 | 80x80 Tall Wall |
|---|---|---|---|---|
| Outside Dimensions | 4' 1/2" | 5' 4 3/8" | 6' 8 3/8" | 6' 8 3/8" |
| Inside Dimensions | 3' 8 1/2" | 5' | 6' 4" | 6' 4" |
| Door Opening Height | 4' 6 1/2" | 5' 1 1/2" | 5' 3 1/4" | 6' 5 5/8" |
| Door Opening Width | 2' 4 1/2" | 3' 1/2" | 3' 3" | 3' 4 1/2" |
| Peak Interior Height | 4' 8 1/4" | 6' 10 1/2" | 6' 10" | 8' 3 1/2" |
| Peak Exterior Height | 5' 3/8" | 7' 1 1/2" | 7' 1 1/2" | 8' 9 5/8" |
| Wall Thickness | 1 3/4" | 1 3/4" | 1 3/4" | 1 3/4" |
| Interior Wall Height (From Ground) | 4' 6 1/2" | 5' 3 1/2" | 5' 3 1/2" | 7' |
| Interior Floor Plate Overhang | 1 3/4" | 1 3/4" | 1 3/4" | 1 3/4" |
| Number of Hinges | 2 | 2 | 2 | 3 |
| Latch Type | Hasp | Hasp | Hasp | Hasp |
| Approx Weight | 230 LBS | 360 LBS | 460 LBS | 600 LBS |
4x4x5 Slope
- Outside Dimensions4' 1/2"
- Inside Dimensions3' 8 1/2"
- Door Opening Height4' 6 1/2"
- Door Opening Width2' 4 1/2"
- Peak Interior Height4' 8 1/4"
- Peak Exterior Height5' 3/8"
- Wall Thickness1 3/4"
- Interior Wall Height (From Ground)4' 6 1/2"
- Interior Floor Plate Overhang1 3/4"
- Number of Hinges2
- Latch TypeHasp
- Approx Weight230 LBS
64x64
- Outside Dimensions5' 4 3/8"
- Inside Dimensions5'
- Door Opening Height5' 1 1/2"
- Door Opening Width3' 1/2"
- Peak Interior Height6' 10 1/2"
- Peak Exterior Height7' 1 1/2"
- Wall Thickness1 3/4"
- Interior Wall Height (From Ground)5' 3 1/2"
- Interior Floor Plate Overhang1 3/4"
- Number of Hinges2
- Latch TypeHasp
- Approx Weight360 LBS
80x80
- Outside Dimensions6' 8 3/8"
- Inside Dimensions6' 4"
- Door Opening Height5' 3 1/4"
- Door Opening Width3' 3"
- Peak Interior Height6' 10"
- Peak Exterior Height7' 1 1/2"
- Wall Thickness1 3/4"
- Interior Wall Height (From Ground)5' 3 1/2"
- Interior Floor Plate Overhang1 3/4"
- Number of Hinges2
- Latch TypeHasp
- Approx Weight460 LBS
80x80 Tall Wall
- Outside Dimensions6' 8 3/8"
- Inside Dimensions6' 4"
- Door Opening Height6' 5 5/8"
- Door Opening Width3' 4 1/2"
- Peak Interior Height8' 3 1/2"
- Peak Exterior Height8' 9 5/8"
- Wall Thickness1 3/4"
- Interior Wall Height (From Ground)7'
- Interior Floor Plate Overhang1 3/4"
- Number of Hinges3
- Latch TypeHasp
- Approx Weight600 LBS
Fill out the form for a quote
We install and maintain water treatment systems throughout Northeast Texas, Southwest Arkansas, and Southeast Oklahoma.
