Well Pump Houses for Texarkana and Surrounding Areas

Home > Well Pump Houses

A water system is only as reliable as the equipment that supports it.

At Pender Water Wells, we install prefabricated, insulated steel well pump houses that safeguard pumps, controls, and piping from weather, pests, and damage. Serving Northeast Texas, Arkansas, and Southeast Oklahoma since 1955, our team ensures your pump house is built for protection, efficiency, and long service life.

Some of the features of our well pump houses:
Removable for more efficient well service
Comes with slab and mounting hardware
Insulated with thermostat controlled heater
Freeze and insect protection

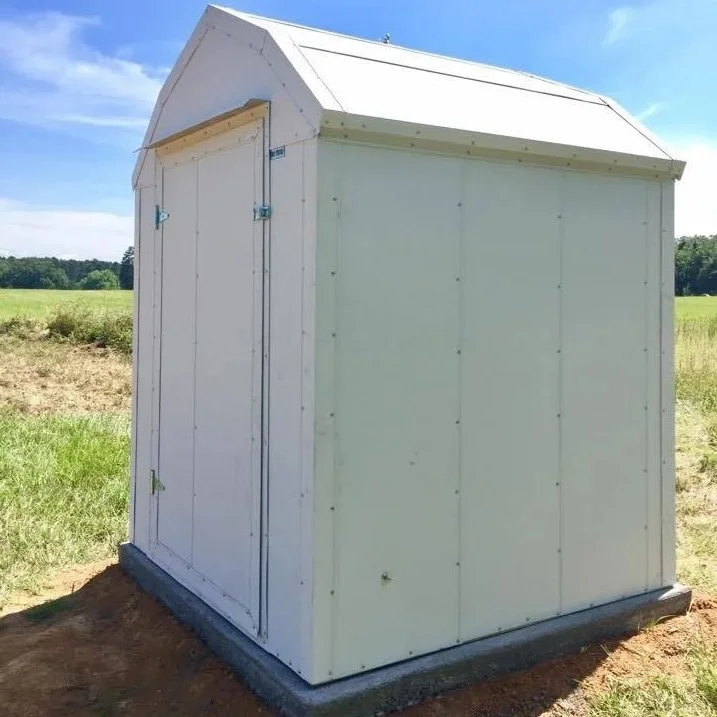

well house installation in texarkana

Features of Our Pump Houses

Prefabricated Construction – Engineered for fast installation and consistent quality.

Insulated Walls & Roofs – Protect pumps from extreme heat, freezing, and condensation.

Durable Materials – Built to withstand rural, residential, and commercial environments.

Custom Sizing – Designed to fit the exact needs of your water system.

Secure Access – Lockable doors to prevent tampering or vandalism.

Benefits of Installing a Pump House

Extends pump and equipment life.

Reduces risk of freeze damage or overheating.

Keeps your system cleaner and easier to service.

Improves overall reliability of your water supply.

WELL HOUSE SPEC SHEET 4 x 4 64" 80" 80" Tall Wall
Outside Dimension48 1/4"64 1/2"80 1/2"80 1/2"
Inside Dimension44 3/4"61"77"77"
Door Opening Height41"61"63 3/4"77"
Door Opening Width29 1/2"36 3/4"39 1/4"35 5/8"
Peak Exterior Height48 1/2"80"87"101"
Peak Interior Height46 1/2"77 1/2"84"98"
Wall Thickness1 3/4"1 3/4"1 3/4"1 3/4"
Interior Wall Height (from ground)46 1/2"60"67"83"
Interior Floor Plate Overhang1 3/4"1 3/4"1 3/4"1 3/4"
Number of Hinges2223
Latch TypeHaspHaspHaspKnob
Weight (Approximate)295 lbs.380 lbs.445 lbs.550 lbs.
Insulation R-Value18181818

4 x 4

Outside Dimension48 1/4"
Inside Dimension44 3/4"
Door Opening (H × W)41" × 29 1/2"
Peak Height (Ext / Int)48 1/2" / 46 1/2"
Wall Thickness1 3/4"
Interior Wall Height46 1/2"
Floor Plate Overhang1 3/4"
Hinges2
LatchHasp
Approx. Weight295 lbs.
Insulation R-Value18

64"

Outside Dimension64 1/2"
Inside Dimension61"
Door Opening (H × W)61" × 36 3/4"
Peak Height (Ext / Int)80" / 77 1/2"
Wall Thickness1 3/4"
Interior Wall Height60"
Floor Plate Overhang1 3/4"
Hinges2
LatchHasp
Approx. Weight380 lbs.
Insulation R-Value18

80"

Outside Dimension80 1/2"
Inside Dimension77"
Door Opening (H × W)63 3/4" × 39 1/4"
Peak Height (Ext / Int)87" / 84"
Wall Thickness1 3/4"
Interior Wall Height67"
Floor Plate Overhang1 3/4"
Hinges2
LatchHasp
Approx. Weight445 lbs.
Insulation R-Value18

80" Tall Wall

Outside Dimension80 1/2"
Inside Dimension77"
Door Opening (H × W)77" × 35 5/8"
Peak Height (Ext / Int)101" / 98"
Wall Thickness1 3/4"
Interior Wall Height83"
Floor Plate Overhang1 3/4"
Hinges3
LatchKnob
Approx. Weight550 lbs.
Insulation R-Value18

Fill out the form for an estimate

We install and maintain water treatment systems throughout Northeast Texas, Southwest Arkansas, and Southeast Oklahoma.
